Description

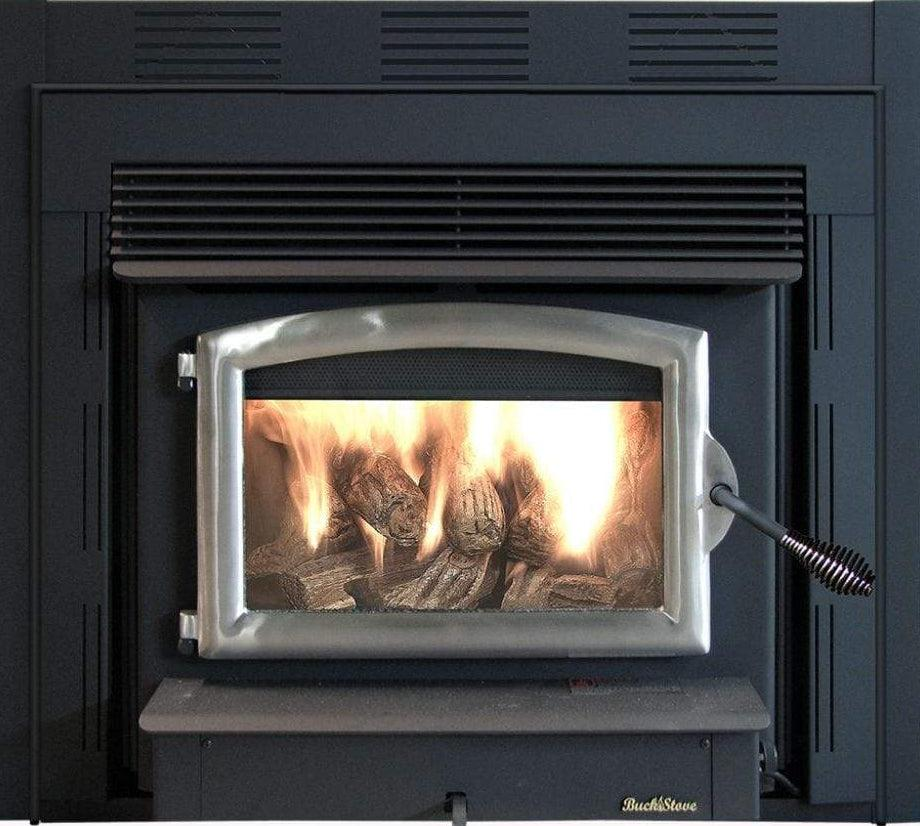

Perfect for your new construction or remodeling project. The model 74ZC will save the expense of a masonry fireplace while enjoying all the warmth and efficiency of a Buck Stove. Our model 74ZC non-catalytic unit features a factory installed variable speed blower as standard equipment.The firebox features secondary reburn tubes producing a High Efficiency burn, without a Catalyst. This unit is Washington and Oregon state-approved.Built to last and be aesthetically pleasing you’re going to love using this Buck Stove Model 74ZC Non-Catalytic Wood Stove. Made in the US with the best materials, you can be assured that you’re getting beauty and durability all in one. A Buck Stove product gives you clean modern designs to show off the quality of the craftsmanship.
What’s Included
- Model 74ZC Zero Clearance Non-Catalytic Wood Burning Stove
Not Included
- Outside air pedestal
FeaturesÂ
- Size: 38 Inches
- Color: Black
- Product Dimensions: 38″ W x 34″ H x 22 3/8″ D
- Non-catalytic
- Weighs 585 lbs.
- Wood burning fireplace insert
- Firebox volume of 2.6 cubic feet
- Easy operation and low maintenance
- Three design options to choose from
- Approved for use in prefab and mobile homes
- Accommodates 16″ logs front to back or 22″ side to side
Specifications
| Model | FP ZC74P |
| Stove Dimensions (Front) | 38″ W x 34″ H |
| Length | 16″ (front to back)22″ (side to side) |
| Firebox Volume | 2.6 Firewood |
| Weight | 585 lbs |
| Firewood Length | 22″ (side to side) 16″ (front to back) |
| Framing Dimensions | 37-1/2″ W x 34-3/4″ H x 24-3/4″ D (From Finished Wall) (Measurement from the back of the cabinet to the beginning of flue pipe 7″) |
| Flue Size | 6″ |
| Efficiency | Up to 73% |
| Heart Pad Size | N/A |
| Heat Capacity | 1500 – 2,600 Sq. Feet |
| Output BTU/H | 13,300-52,400 |
| Emissions G/H | 1.8 Cubic Feet |
| Maximum CFM | 85 CFM (Included Blower) |
| Amperage Requirement | Requires 15 Amp Dedicated Circuit |
| Blower Type | Single |
| Ashpan | No |
| Optional Pedestal | N/A |
| Pre-Fab Approved | No |
| Mobile Home Approved | Yes |
| Shipping Weight (Includes Pallet/Crate) | 618 lbs |
| Shipping Length (Includes Pallet/Crate) | 35″ |
| Shipping Width (Includes Pallet/Crate) | 45″ |
| Shipping Height (Includes Pallet/Crate) | 41.5″ |
| Installation Options | Freestanding or Fireplace Insert |
