Description

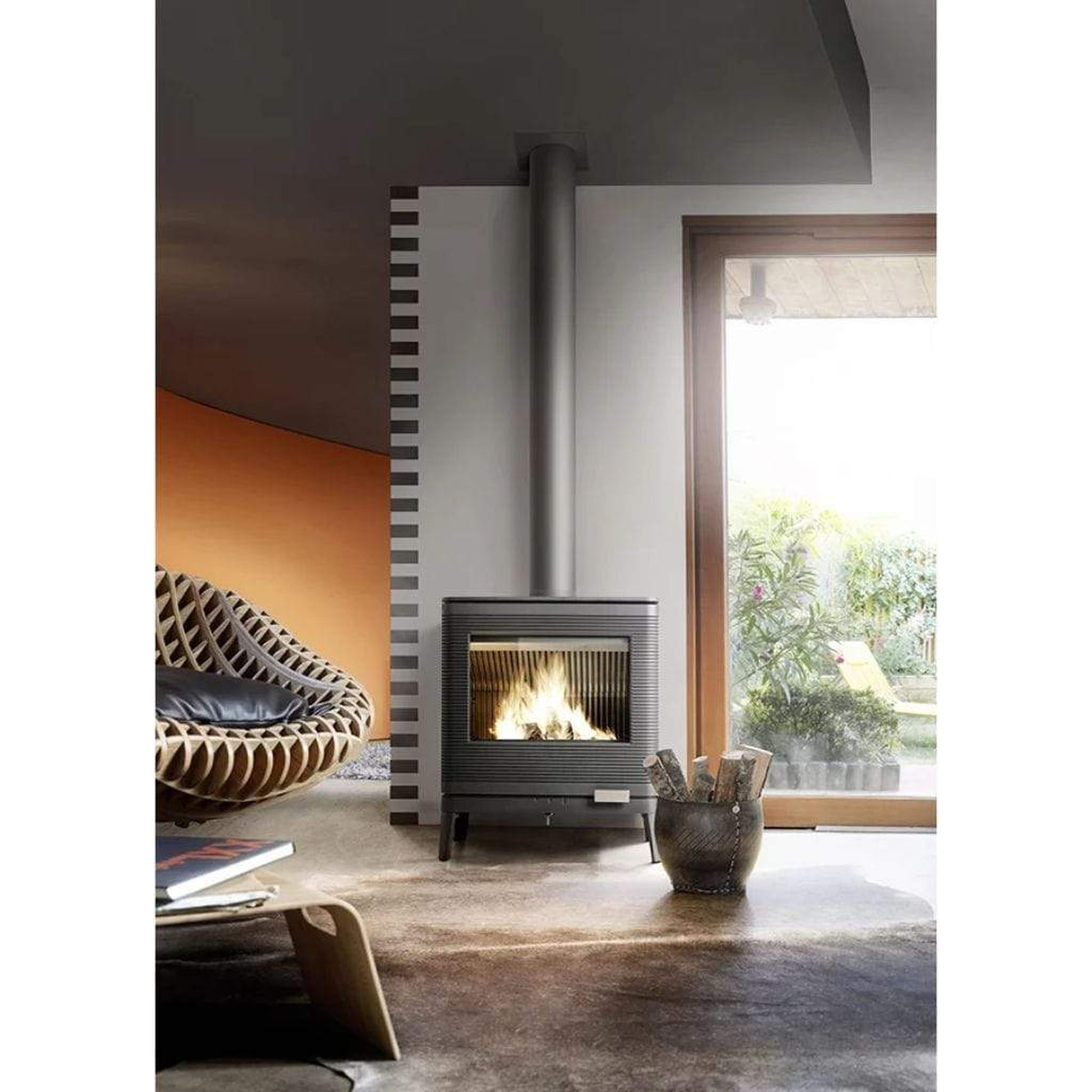

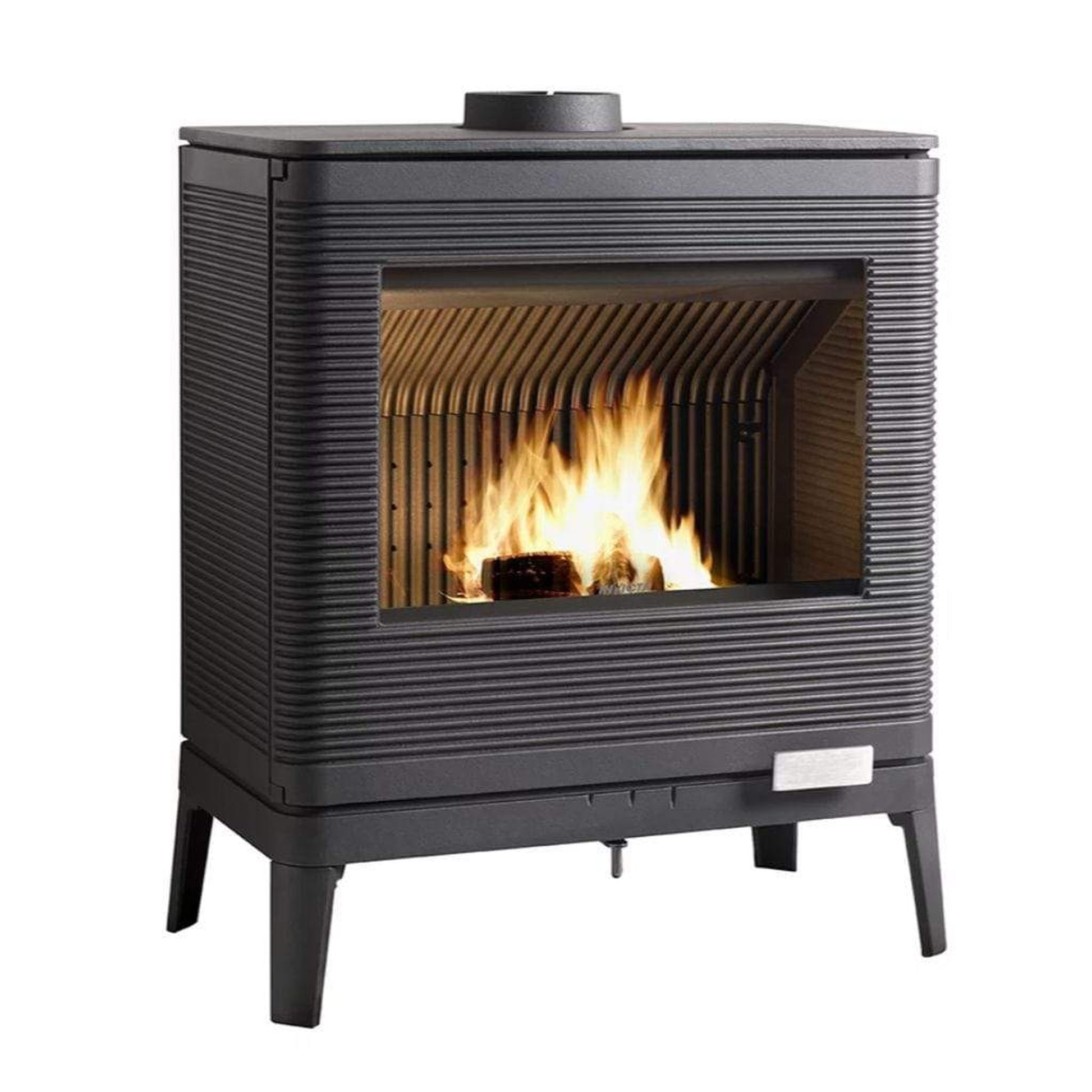

Kazan is a stylish and high-performance stove inspired by the heat efficiency of cast iron radiators. Its fins provide it with a unique and elegant look, all the while improving its energy efficiency by way of an extended heat transfer surface.Zen attitude…Kazan breathes harmony and serenity to your home. Feel all the positive energy that emerges from this well-proportioned stove.The stylish Kazan fireplace combines modern design and great performance. Manufactured in France by Invicta, the Kazan will deliver up to 42,000 BTUs of heat. Feel all the energy and warmth that emerges from this beautiful, woodburning stove.
What’s Included
- Cast iron stove
Not Included (Sold Separately)
- Rear Heat Shield
- Venting Options
Features
- 8-hour extended burning – The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.
- Adjustable secondary air – Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
- Clean glass –Â The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers the combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
- Extended warranty 3 years –Â For log products, the free 3-year warranty extension is conditional on the product being registered online.
- Origine France Garantie (Made in France Guarantee) –Â The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.
- Post-combustion system –Â Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.
Specifications
| Optimal Power | 9 kW |
| Heating Volume (m³) | 125 to 275 m³ |
| Heating surface (m²) | 50 to 110 m² |
| Flamme Verte (Environmental label) | 7 stars |
| Useful efficiency (%) | 76% |
| Seasonal efficiency – ETAS | 66 |
| CO (%) | 0,08 % |
| CO (mg/Nm³) | 1000 |
| Dust (mg/Nm³) | 31 mg/Nm³ |
| GOC (mg/Nm³) | 103 |
| NOx (mg/Nm³) | 160 |
| Energy Efficiency Index (EEI) | 100 |
| Flue gas mass flow (g/s) | 7,3 |
| Flue gas temperature (°C) | 325 |
| Combustible | Logs 25, Logs 33, Logs 50 cm |
| Maximum log length (horizontally) | 58 cm |
| Loading | Façade |
| Flue exit | Top or Back |
| Flue diameter (mm) | 150 mm |
| Flue exit height from floor (mm) | 636 mm |
| Dimensions – H * W * D | 31.5″ x 25.5″ x 14.75″ |
| Weight (kg) | 157 kg |
| Design | Contemporary |
| Material | Cast iron |
| Finish | Anthracite |
| Certification | EN 13240 – BImSchV2 |
