Description

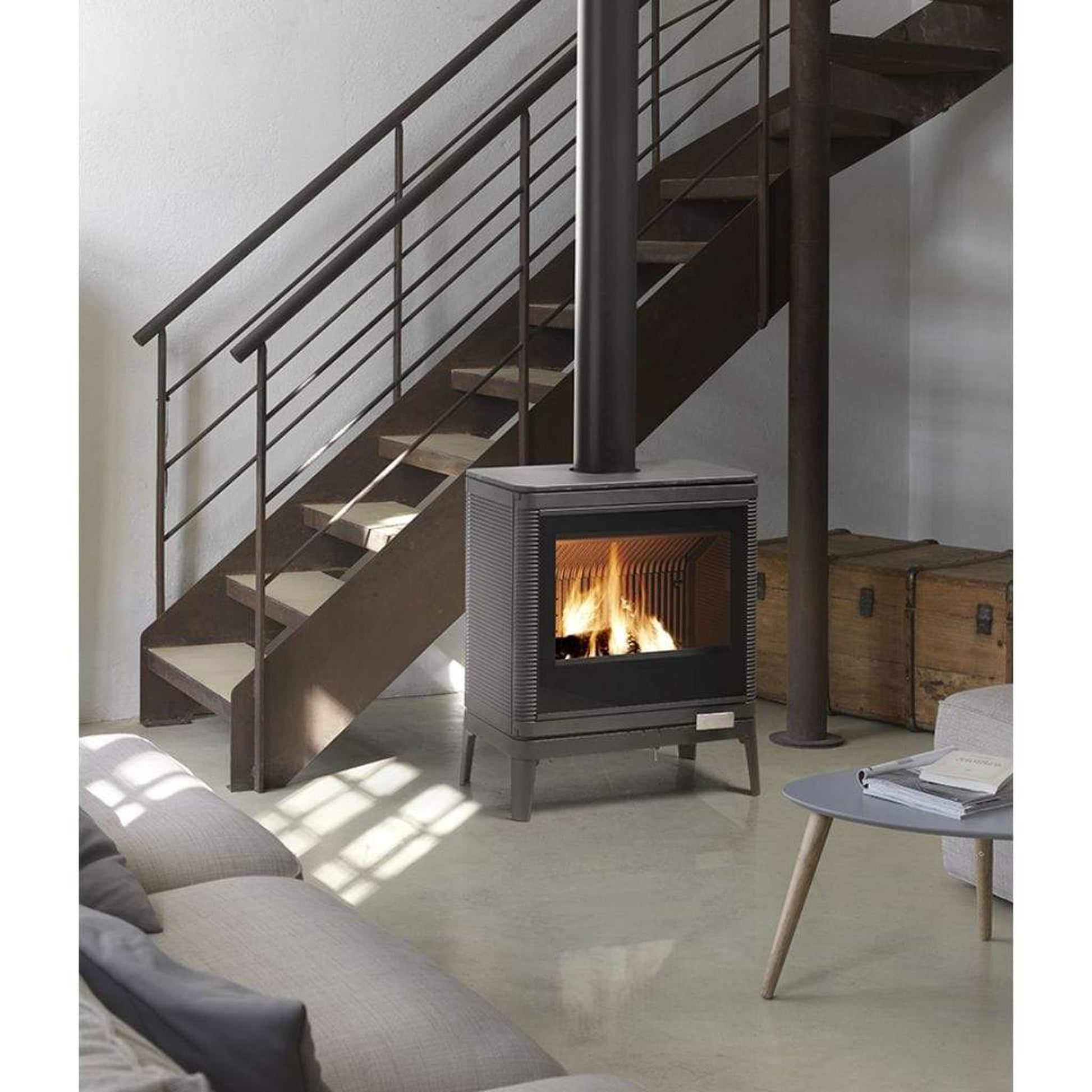

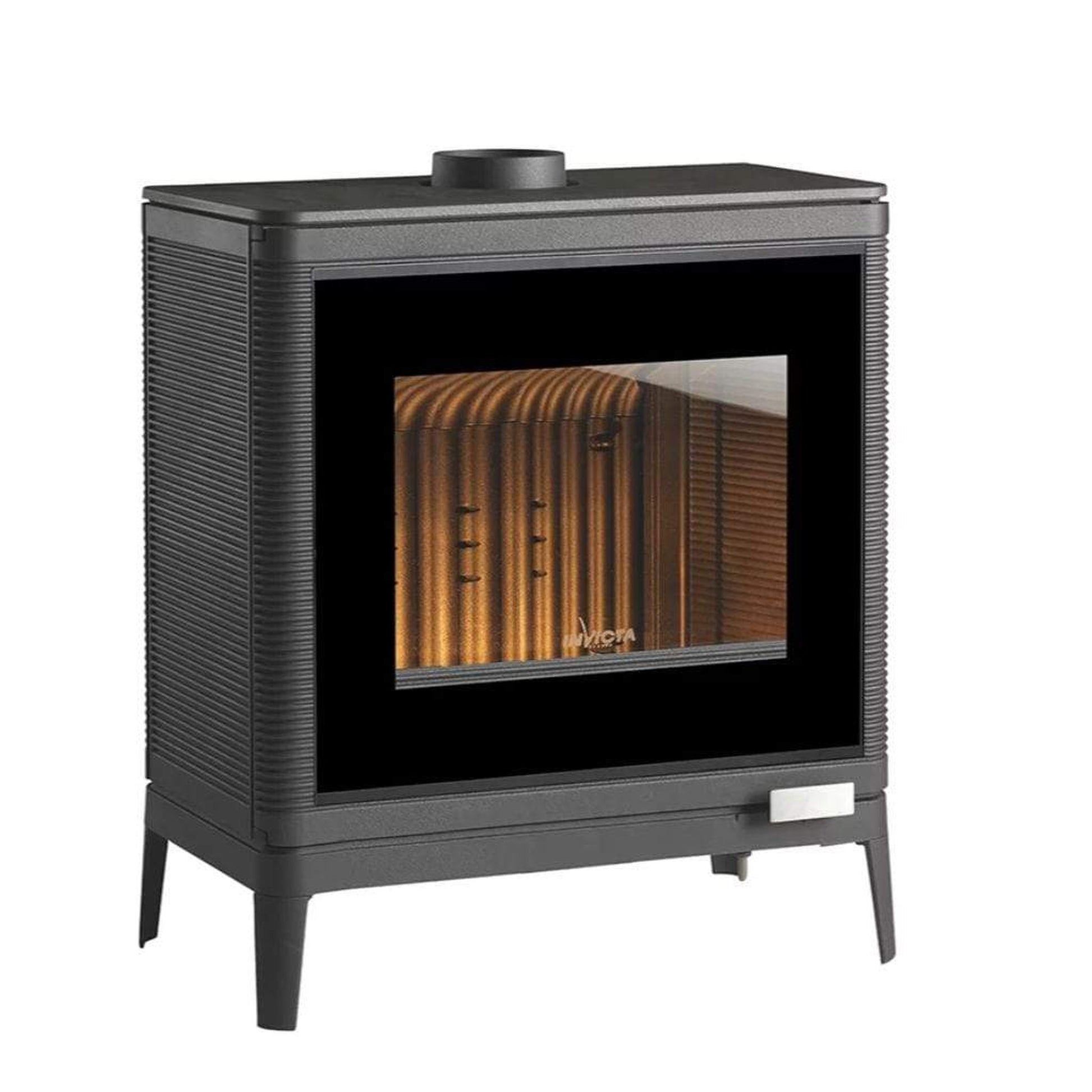

Featuring a screen-printed “grand angle” (GA) pane, our Kazan stove is both powerful and chic. Its fins are designed with an extended heat transfer surface for improved energy efficiency.
Directly inspired by the thermal efficiency of cast iron radiators, Kazan Grand Angle (GA) combines design and performance. The fins give it a unique and elegant streamlined style, while enhancing energy performance through increased heat exchange surface.
The Kazan GA (Grand Angle), manufactured in France by Invicta, is inspired by the thermal efficiency of cast iron radiators. The elegant and innovative design of the fins is where composition and production meet while also providing enhanced energy performance through its increased heat exchange surface.
What’s Included
- Cast iron stove
Not Included (Sold Separately)
- Rear Heat Shield
- Venting Options
Features
- 8-hour extended burning – The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.
- Adjustable secondary air – Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
- Clean glass – The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
- Origine France Garantie (Made in France Guarantee) – The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.
- Post-combustion system – Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.
Specifications
| Optimal Power | 9 kW |
| Heating volume (m³) | 125 to 275 m³ |
| Heating surface (m²) | 50 to 110 m² |
| Flamme verte (environmental label) | 7 stars |
| Useful efficiency (%) | 76 |
| Seasonal efficiency – ETAS | 66 |
| CO (%) | 0.08 % |
| CO (mg/Nm³) | 1000 |
| Dust (mg/Nm³) | 31 mg/Nm³ |
| GOC (mg/Nm³) | 103 |
| NOx (mg/Nm³) | 160 |
| Energy Efficiency Index (EEI) | 100 |
| Flue gas mass flow (g/s) | 7,3 |
| Flue gas temperature (°C) | 325 |
| Combustible | Logs 25, Logs 33, Logs 50 cm |
| Maximum log length (horizontally) | 58 cm |
| Loading | Façade |
| Flue exit | Top or Back |
| Flue diameter (mm) | 150 mm |
| Flue exit height from floor (mm) | 636 mm |
| Dimensions – H * W * D | 31.5″ x 25.5″ x 14.75″ |
| Weight (kg) | 162 kg |
| Design | Contemporary |
| Material | Cast iron |
| Finish | Anthracite |
| Certification | EN 13240 |
| Warranty | 2 years + extension 3 years* |
