Description
As elegant as they are efficient, the Lodge Collection wood burning stoves have raised the standard for home heating with their proven, Thermal Fin Technology (TFT™). This innovative cast-iron heat exchanger delivers the perfect amount of heat. Expansive, durable ceramic glass gives you unobstructed views of the fire and allows for easy heat transfer. A wide array of high-quality, versatile styling options means that Lodge Collection stoves will easily complement any décor.
What’s Included

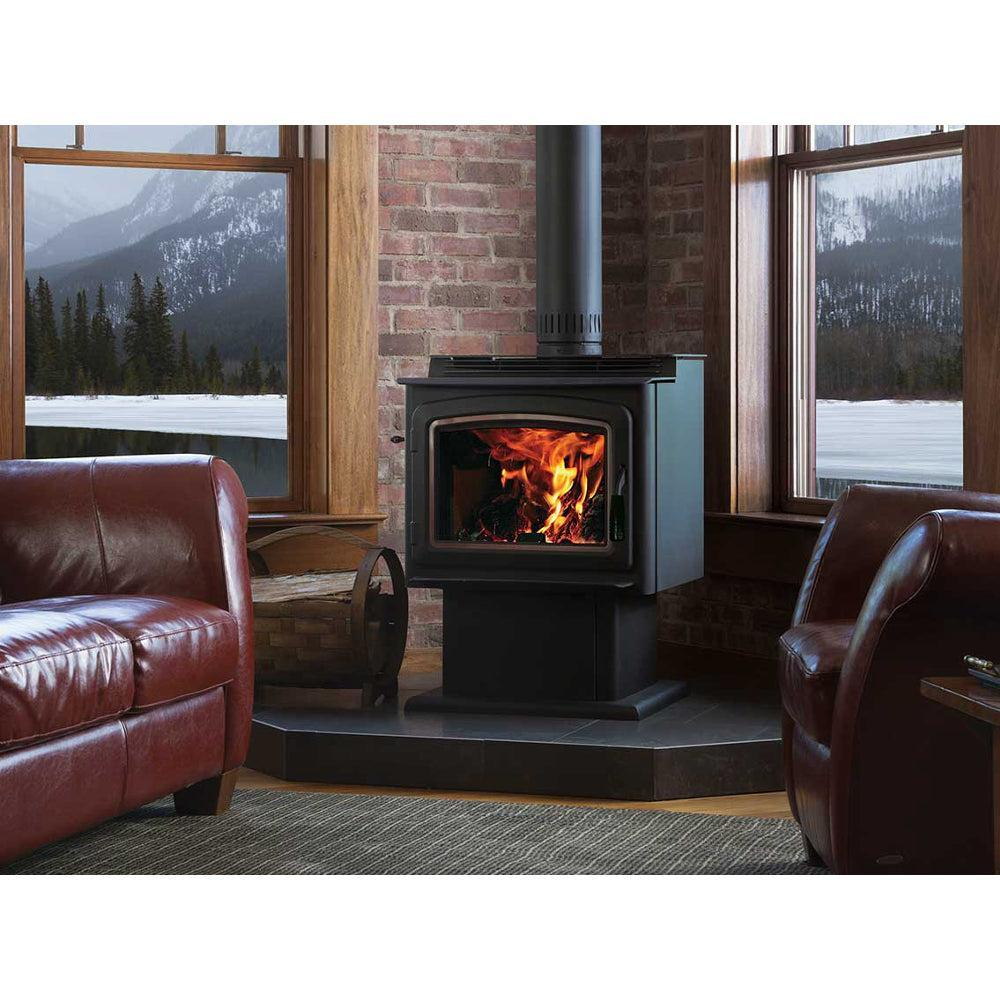

- Grandview 230 Freestanding Wood Burning Stove Assembly
Not Included (sold separately)
- Blower
- Outside Air Kit
- Louvers
- Legs
- Pedestal
- Ash Drawer for legs or for pedestal
Features
- Spacious 2.3 cubic foot firebox interior accepts up to 18” logs.
- 76,000 BTU’s/hour and heats up to 1,200-2,200 square feet.
- Thermal Fin heat exchanger creates 32% more surface area than a standard stove design resulting in more heat entering the room.
- Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
- Tall opening provides and expansive view of the burning fire.
- Ceramic glass for extra strength and optimum heat transfer.
- Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
- Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
- High-density firebrick retains heat longer, resulting in increased efficiency.
- One-touch control ensures easy operation and comfort.
- EPA-certified and Washington State-approved for clean and efficient operation.
Specifications
| Model | GV230GL |
| Fuel Type | Wood |
| BTU | EPA Test Load: 28,200 BTUs/hr. Cord Wood: 76,000 BTUs/hr |
| Design Style | Lodge Collection |
| Heating Capacity | Approx. 1200 to 2200 sq. ft. |
| Maximum Burn Times | Approx. 8 hours |
| Stove Pipe: Diameter Single Wall or Double Wall | 6″ (152 mm) |
| Log Length | 16” W x 18” D Max. (406mm W x 457mm D Max.) |
| Firebox | 17” W x 19” D x 12-1/2” H Max. (432mm W x 483mm D x 318mm H Max.) |
| Glass Viewing Area | 16-1/2” W x 11-5/16” H (419mm W x 287mm H) |
| Safety Listed | PFS TECO, Tested to UL 1482, ULC S627 |
| Product Dimensions | W 25.125″ x D 26.625″ x H 35″ (Pedestal) |
| Weight | 339 lbs. |
