Description

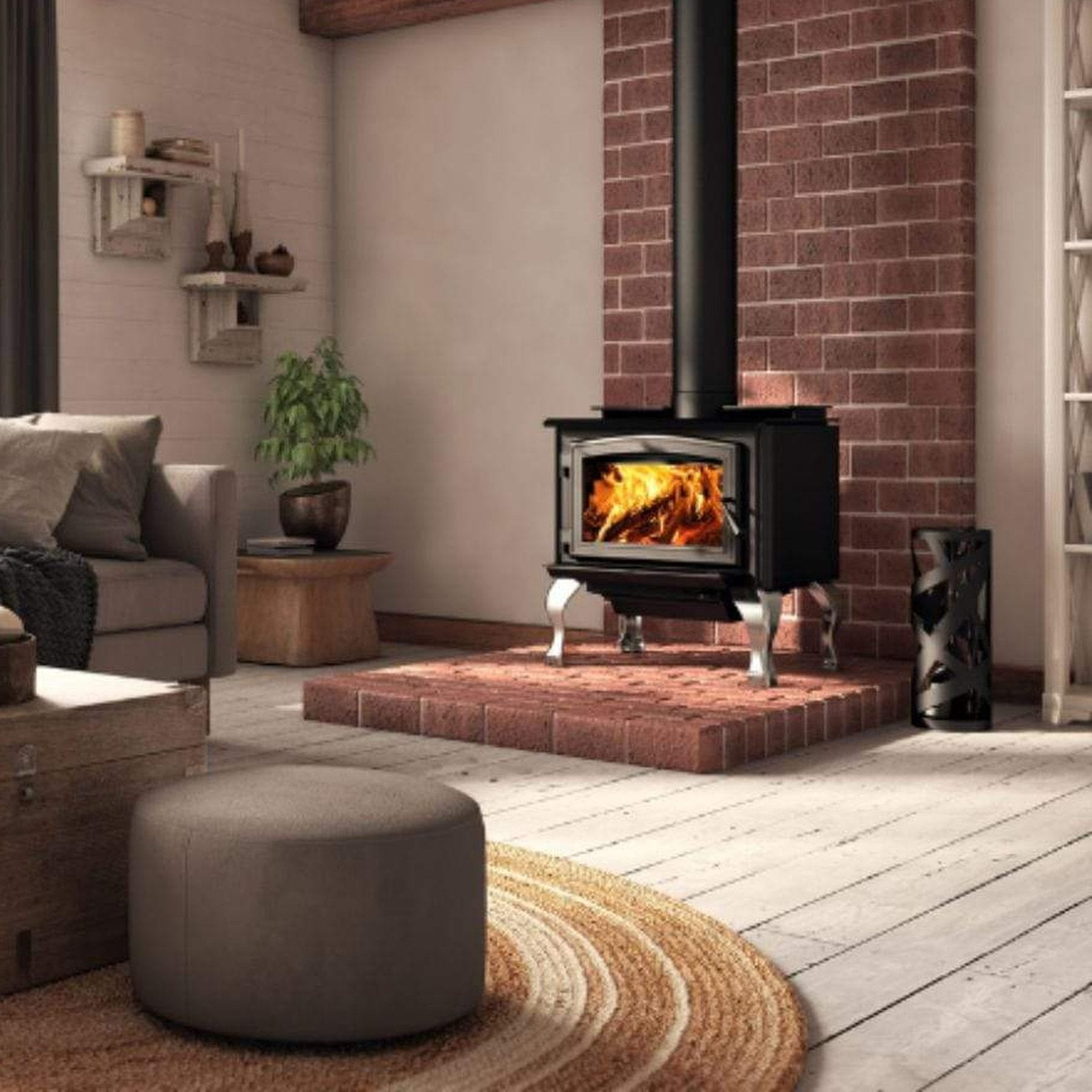

Designed to meet the needs of smaller spaces, the Osburn 1700 is a faithful copy of the recently redefined 2000 model. This firebox combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; and significant innovations for the most seasoned experts. Respecting the most stringent legislation on particle emissions with only 1.26 g/h, this wood stove is perfect for those looking to go further.
What’s Included
- 1700 Wood Stove Assembly
- Black Door Overlay
- Black Cast Iron Straight Legs With Ash Drawer
Not Included
- Air Intake Kit
- Venting Kit and Accessories
Features
- Construction & Durability: Made from black metallic carbon steel, providing long-term durability​
- Heat Distribution: Equipped with heavy-duty ceramic bricks for even heat distribution​
- Combustion Efficiency: Features a unique vacuum design for efficient combustion, reducing creosote build-up on the glass​
- Secondary Air System: Creates a second combustion zone to enhance fuel efficiency and cleaner burning​
- Fuel Type: Uses dry cordwood with a recommended maximum log length
- Approved for a mobile home installation
Specifications
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18″ |
| Log positioning | Loading over width |
| Chimney diameter | 6″ |
| Flue outlet diameter | 6″ |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15′ |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 336 lb (153 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 3/4″ x 9 3/8″ |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 30.375″ |
| Overall dimension (Width) | 24.875″ |
| Overall dimension (Depth) | 23.25″ |
| Door opening – dimension (Height) | 8 3/4″ |
| Door opening – dimension (Width) | 17 1/4″ |
| Firebox – dimension (Height) | 11 7/8″ |
| Firebox – dimension (Width) | 19 5/8″ |
| Firebox – dimension (Depth) | 13 1/2″ |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Legs or pedestal |
| Steel thickness – body | 3/16″ |
| Steel thickness – top | 5/16″ |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
