Description

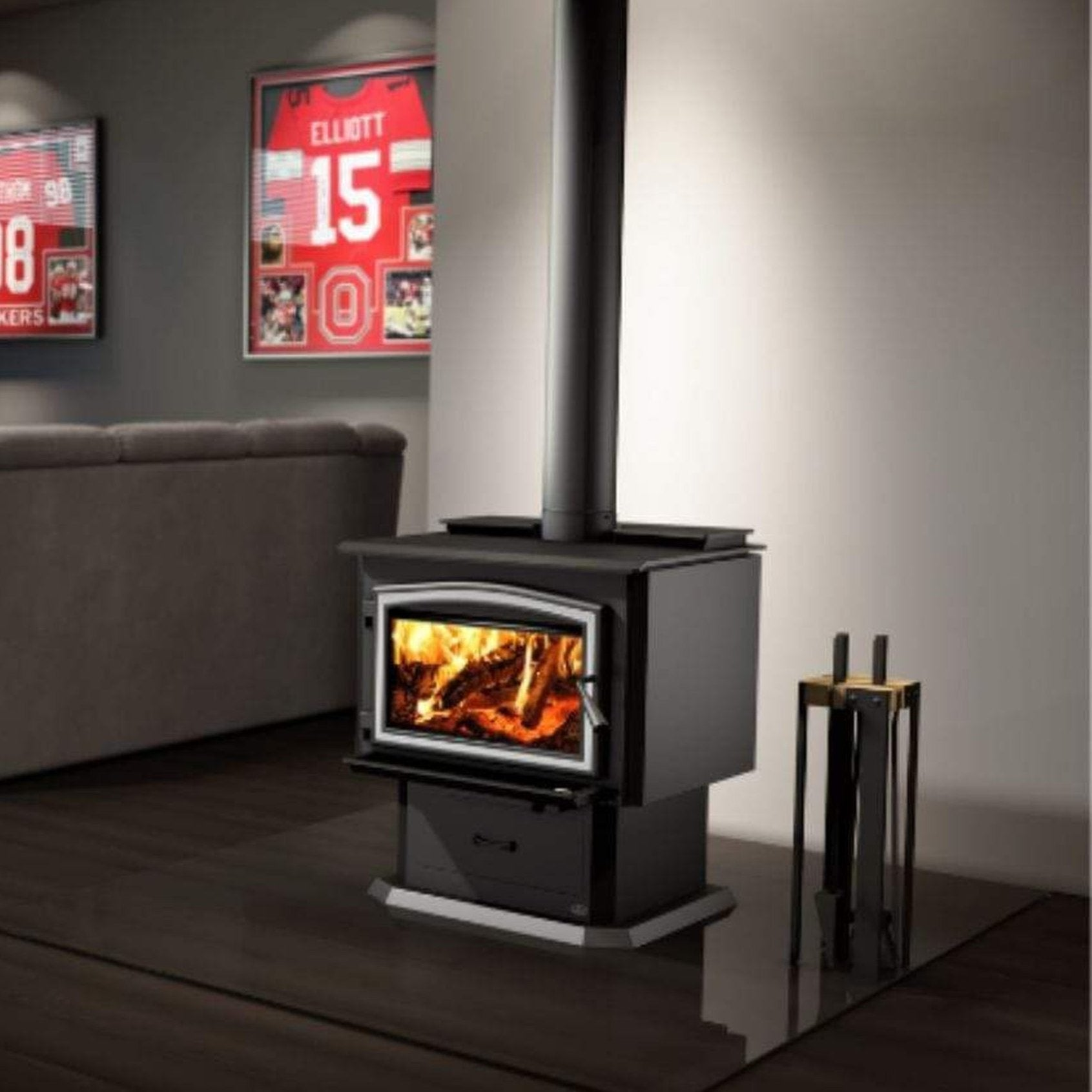

Specifically designed to face the rigor of winter, the Osburn 3500 is essential for any spacious home, especially in harsh weather conditions. Despite its emissions of 1.6 g/h, this wood stove utilizes a user-friendly, non-catalytic technology and significantly reduces fuel consumption. The unit features a firebox that can hold up to 50 lb of cordwood, as well as a blower, a thermodisc, and an airdate for optimal heat distribution and unparalleled comfort.
What’s Included
- 3500 Wood Stove Assembly
- Door Overlays (Required)
Not Included
- Air Intake Kit
- Venting Kit and Accessories
Features
- Construction & Durability: Made from black metallic carbon steel, providing long-term durability​
- Heat Distribution: Equipped with heavy-duty ceramic bricks for even heat distribution​
- Combustion Efficiency: Features a unique vacuum design for efficient combustion, reducing creosote build-up on the glass​
- Secondary Air System: Creates a second combustion zone to enhance fuel efficiency and cleaner burning​
- Fuel Type: Uses dry cordwood with a recommended maximum log length
- Approved for a mobile home installation
Specifications
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 22″ |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6″ |
| Flue outlet diameter | 6″ |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15′ |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 549 lb (249 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18 7/8″ x 11 3/4″ |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 130 |
| Overall dimension (Height) | 34 3/4″ |
| Overall dimension (Width) | 28 7/8″ |
| Overall dimension (Depth) | 33 1/2″ |
| Door opening – dimension (Height) | 9 7/8″ |
| Door opening – dimension (Width) | 19″ |
| Firebox – dimension (Height) | 12 7/8″ |
| Firebox – dimension (Width) | 22 7/8″ |
| Firebox – dimension (Depth) | 20 1/8″ |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 3/16″ |
| Steel thickness – top | 5/16″ |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
