Description

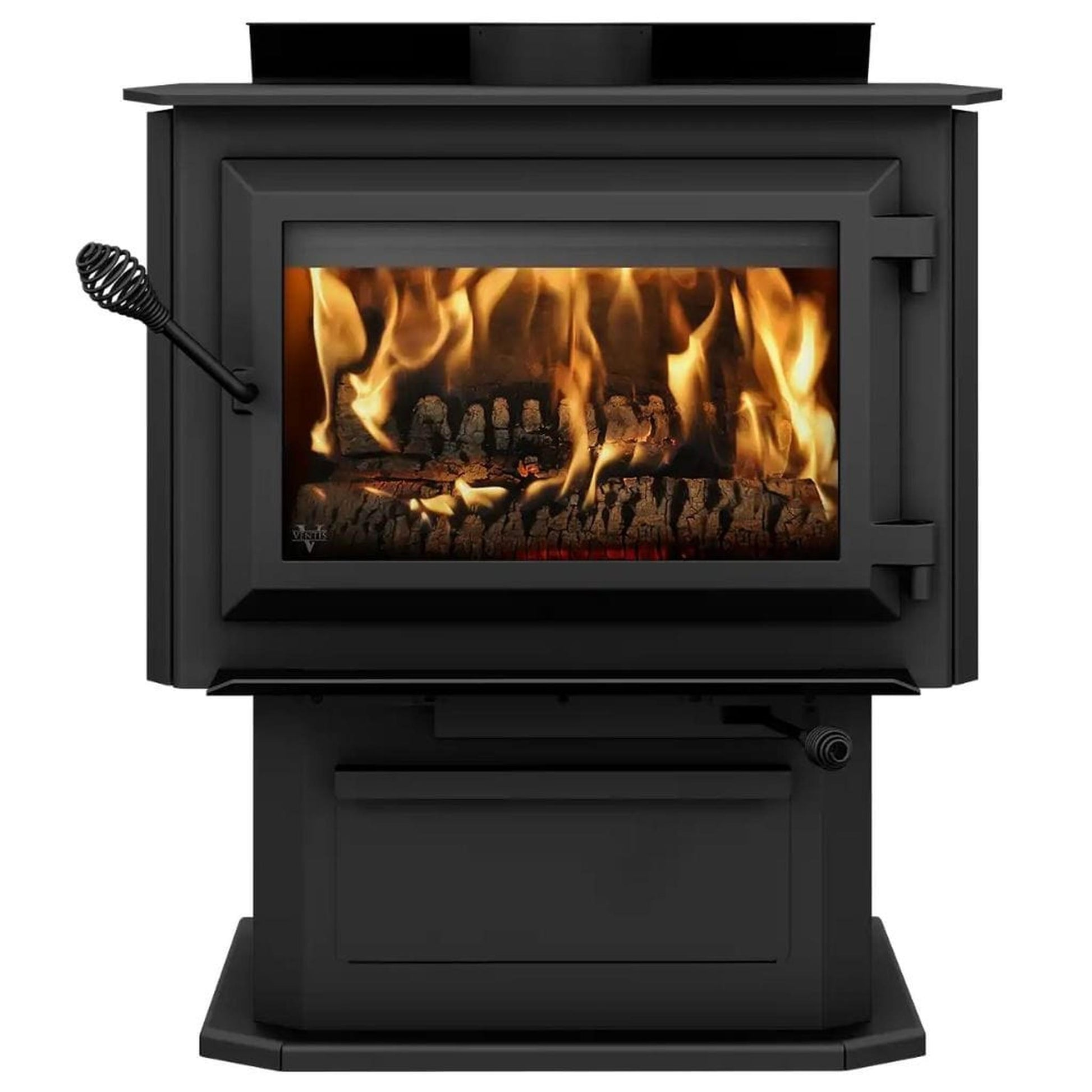

Ventis HES240 Wood Burning Stove is a large size single cast iron door wood stove that is capable of producing up to 75,000 BTUs and recommended for heating larger spaces from 500 – 2,100 square feet. The HES240 offers non-catalytic combustion technology and top heat deflector and side panels. This unit has a 8 hours Maximum Burn Time and can hold 20-Inch logs and is EPA 2020 approved.
What’s Included
- HES240 wood stove
- Cast iron door
- Top heat deflector and side panels
Not Included (Sold Separately)
- Rigid firescreen
- 5″Ø fresh air intake kit
- 130 CFM Blower With Thermodisc
Features
- Large wood stove on pedestal
- EPA certified at 2.3 g/h
- Solidity and manufacturing quality
- Non-catalytic combustion technology
- Installation authorized on the Island of Montreal
- Cast iron door
- Top heat deflector and side panels
- Stainless steel heat shield
Specifications
| Appliance performance |
| Fuel type | Dry cordwood (16″ recommended) |
| Recommended heating area | 500 – 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 1.95 ft³ |
| Maximum burn time | 8 Hours |
| Maximum heat output-dry cordwood | 75,000 BTU/h |
| Minimum overall heat output rate | 14,200 BTU/h (4.16 kW) |
| Maximum overall heat output rate | 44,500 BTU/h (13.04 kW) |
| Average efficiency-dry cordwood (HHV) | 72 % |
| Average efficiency-dry cordwood (LHV) | 77 % |
| Optimum efficiency | 79 % |
| Optimum heat transfer efficiency | 76 % |
| Average particulate emission rate | 2.3 g/h |
| Average CO | 69 g/h |
| General Features |
| Model | HES240 |
| Ignition Type | Manual |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6″ |
| Recommended chimney diameter | 6″ |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12″ |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – W x H | 16 7/8″ x 10 1/4″ |
| Steel thickness-body | 3/16″ |
| Steel thickness-top | 5/16″ |
| Maximum log length | 20″ |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 certified |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Shipping weight | 375 lb (170 kg) |
