Description

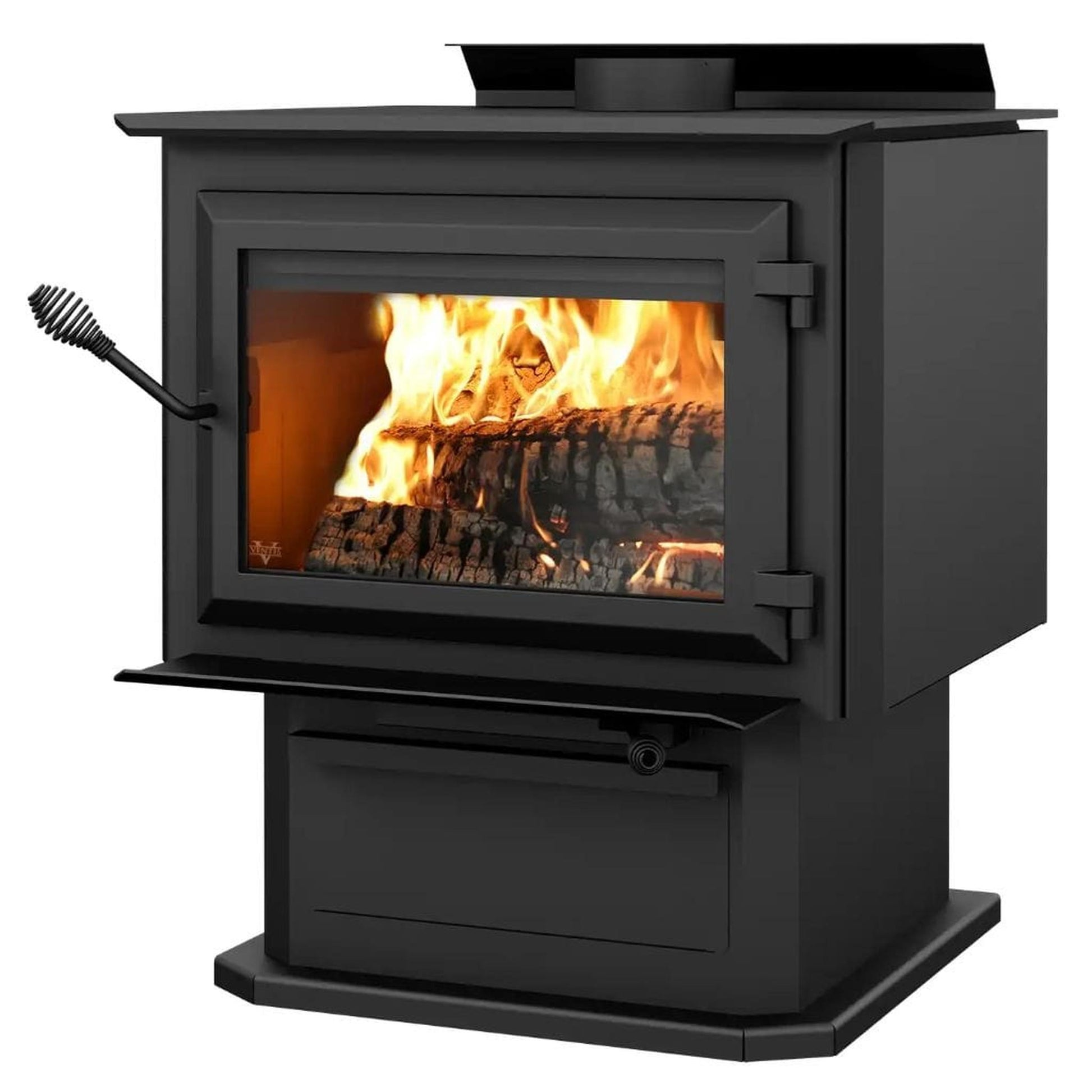

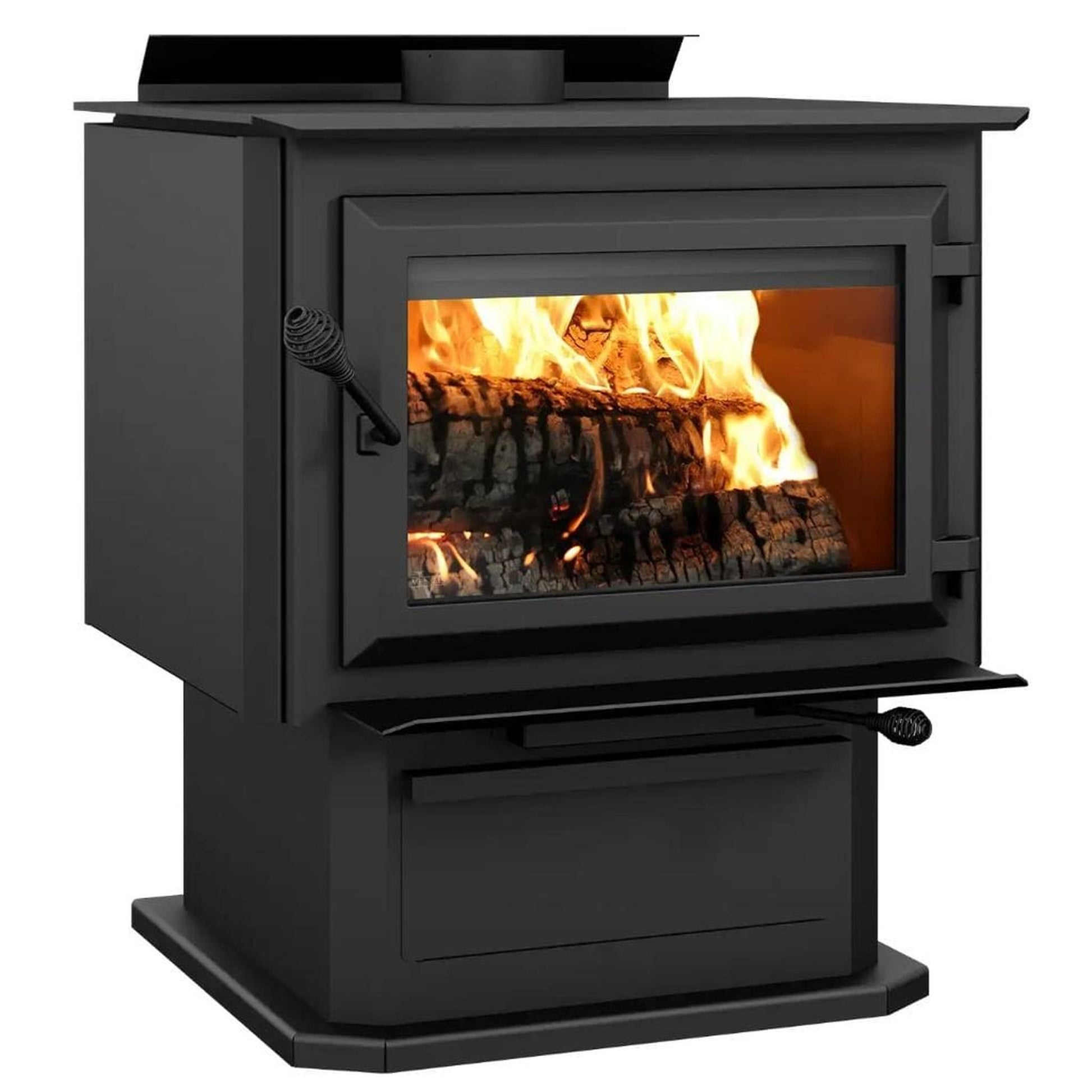

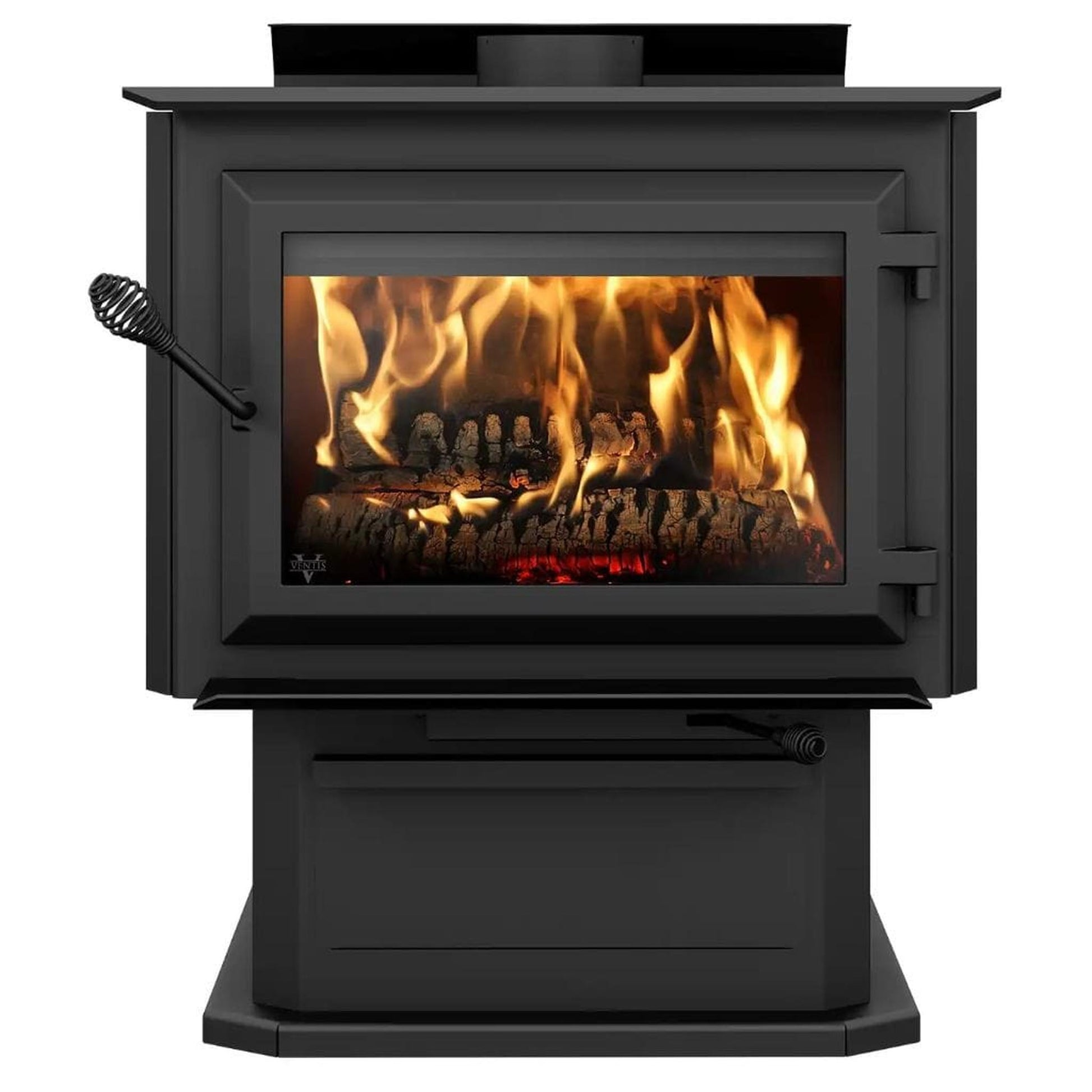

Ventis HES350 Wood Stove on pedestal is designed to accommodate a large spaces. It has a 3.5 ft³ firebox, which is one of the largest fireboxes for a freestanding wood stove. This unit features non-catalytic combustion technology and will heat up to 2,700 sq. ft. It can handle up to a 22-Inch log and produces up to 110,000 BTUs. It will keep you warm in the winter months with a maximum burn time of 10 hours.
What’s Included
- HES350 wood stove
- Cast iron door
- Top heat deflector and side panels
Not Included (Sold Separately)
- Rigid firescreen
- 5″Ø fresh air intake kit
- 130 CFM Blower With Thermodisc
Features
- Extra-large wood stove on pedestal
- EPA certified at only 1.6 g/h
- Solidity and manufacturing quality
- C-Cast heat shield added to the firestop
- Non-catalytic combustion technology
- Installation authorized on the Island of Montreal
- Cast iron door
- Top heat deflector and side panels
Specifications
| Appliance performance |
| Fuel type | Dry cordwood (16″ recommended) |
| Recommended heating area | 1,000 – 2,700 ft² |
| Overall firebox volume | 3.5 ft³ |
| EPA loading volume | 2.88 ft³ |
| Maximum burn time | 10 Hours |
| Maximum heat output-dry cordwood | 110,000 BTU/h |
| Minimum overall heat output rate | 17,200 BTU/h (5.0 kW |
| Maximum overall heat output rate | 57,800 BTU/h (16.9 kW) |
| Average efficiency-dry cordwood (HHV) | 71 % |
| Average efficiency-dry cordwood (LHV) | 76 % |
| Optimum efficiency | 77 % |
| Optimum heat transfer efficiency | 75 % |
| Average particulate emission rate | 1.6 g/h |
| Average CO | 73 g/h |
| General Features |
| Model | HES350 |
| Ignition Type | Manual |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6″ |
| Recommended chimney diameter | 6″ |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12″ |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – W x H | 18 3/8″ x 11 1/2″ |
| Steel thickness-body | 3/16″ |
| Steel thickness-top | 5/16″ |
| Maximum log length | 22″ |
| Log positioning | Loading over width and over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 certified |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
